Observation Time: April 20-23, 2011, 20 hours Parameters: 1、Covered 90’X90’ 2、Considering 60’ overlap regions
|
SOURCE |
W3 |
|
Center |
RA(J2000) : 02:27:03.88
DEC(J2000): +61:52:24.60 |
|
REPEAT |
2 |
|
THETAROW 【arcsec】 |
15 |
|
WIDTH【arcsec】 |
1860 |
|
HEIGHT【arcsec】 |
1860 |
|
RAMP【arcsec】 |
10 |
|
SCANRATE【arcsec/s】 |
75 |
|
TDUMP【s】 |
0.2 |
|
CALRATE |
4 |
|
OFFINTTIME【s】 |
6 |
|
CALINTTIME【s】 |
2 |
Results:

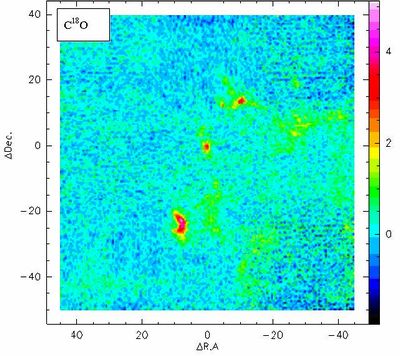

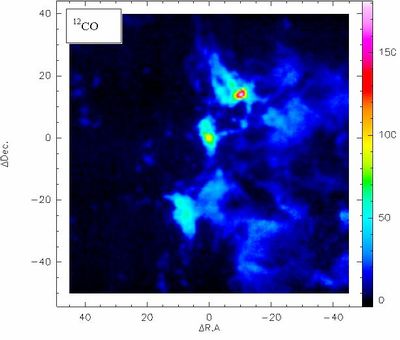

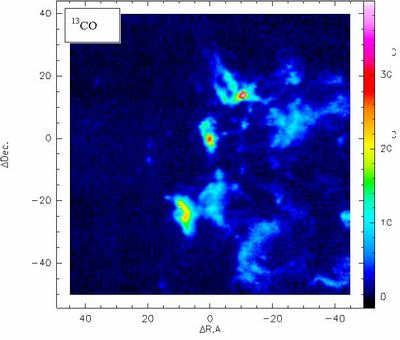

Figure 1. The integrated intensity map of CO, 13CO and C18O for W3 complex, the integrated velocity range is -57 to -25 km/s for 12CO, -54 to -32 km/s for 13CO, -52 to -37 km/s for C18O.

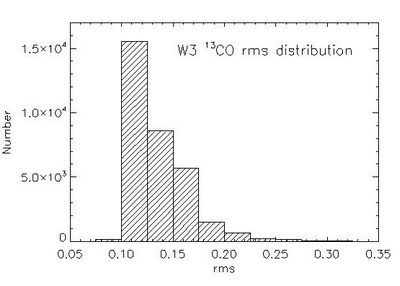

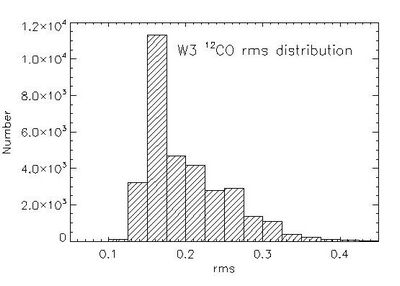

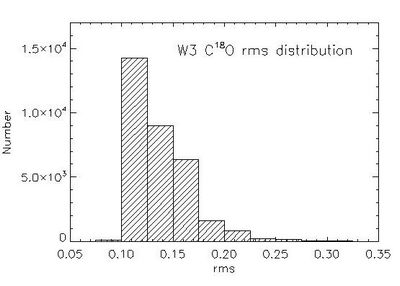

Figure 2. The rms distribution of CO, 13CO and C18O for W3 complex, the velocity resolution is 0.17 km/s. (image or by SUN Yan) |
