Chang’E-3  (CE-3) spacecraft landed on the Eratosthenian basalts in north Mare  Imbrium and performed in situ exploration with the Yutu (Jade Rabbit)  rover for nearly two months. To contribute to the interpretation of the  CE-3 rover data, the understanding of the compositional and geologic  context of the landing site from a regional point of view is essential.  In this paper we performed comprehensive research of the northwest  Imbrium through the integrated analysis of diverse datasets.

  We mapped  new geologic and structural maps (Fig. 1) of the research area using a  large amount of data including high spatial resolution images (the Lunar  Reconnaissance Orbiter Camera (LROC) Narrow Angle Camera (NAC) data),  hyperspectral images (M3, the Chang’E-1 IIM Interference Imaging  Spectrometer (IIM) data), multi-band images (the LROC Wide Angle Camera  (WAC) 7-band mosaic, Clementine, Earth based 70 cm (P-band) radar),  topographic data (the LROC WAC low-Sun mosaic data, the Lunar Orbiting  Laser Altimeter (LOLA) data), and elemental data. We suggested to divide  into the Lower Eratosthenian mare (LEm) and Upper Eratosthenian mare  (UEm) units based on whether lava fronts can be clearly seen or not and  the age separating the units is 2.35 Ga. The mafic mineralogy of the  mare basalts in Imbrium is characterized by abundant olivine in the  Eratosthenian-aged basalts and average pyroxene compositions near  pigeonite to sub-calcic augite in the Imbrian and Em1 units (Fig. 2).

By with WU Yunzhao

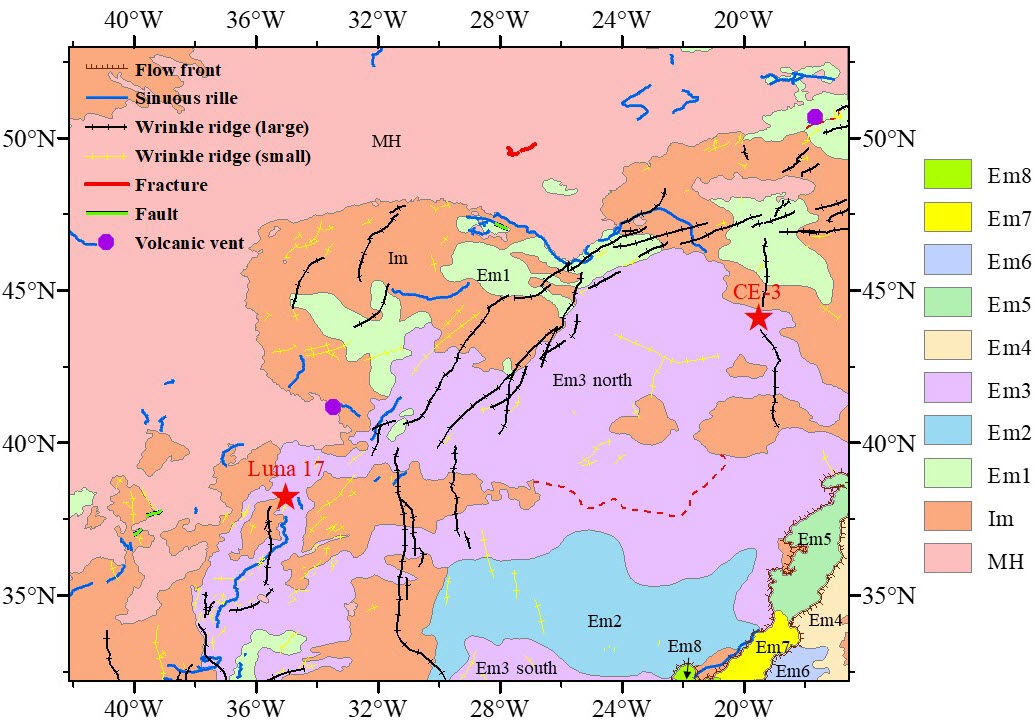

Fig. 1. Geologic map of the northwest Imbrium. Red dashed line marks sub-unit of Em3.

  We found  that the highlands surrounding Imbrium differ from typical Farside  Highlands Terrain (FHT). The Iridum highland region (as well as the  surrounding Imbrium region) exhibits elevated concentrations of Fe, and  abundant local exposures of low-Ca pyroxene and olivine bearing  lithologies. In this study these highlands are named as mafic highlands  (MH). Our dating results using crater size-frequency distributions  (CSFDs) show that the Iridum basin (hosting Sinus Iridum) was formed  ~3.8 Ga, shortly following the Imbrium basin formation and before the  last large multiringed basin, Orientale. Many young ridges were found  inside Imbrium, suggesting a very extended period (<50 Ma) of the  Moon’s tectonic activity.

By with WU Yunzhao

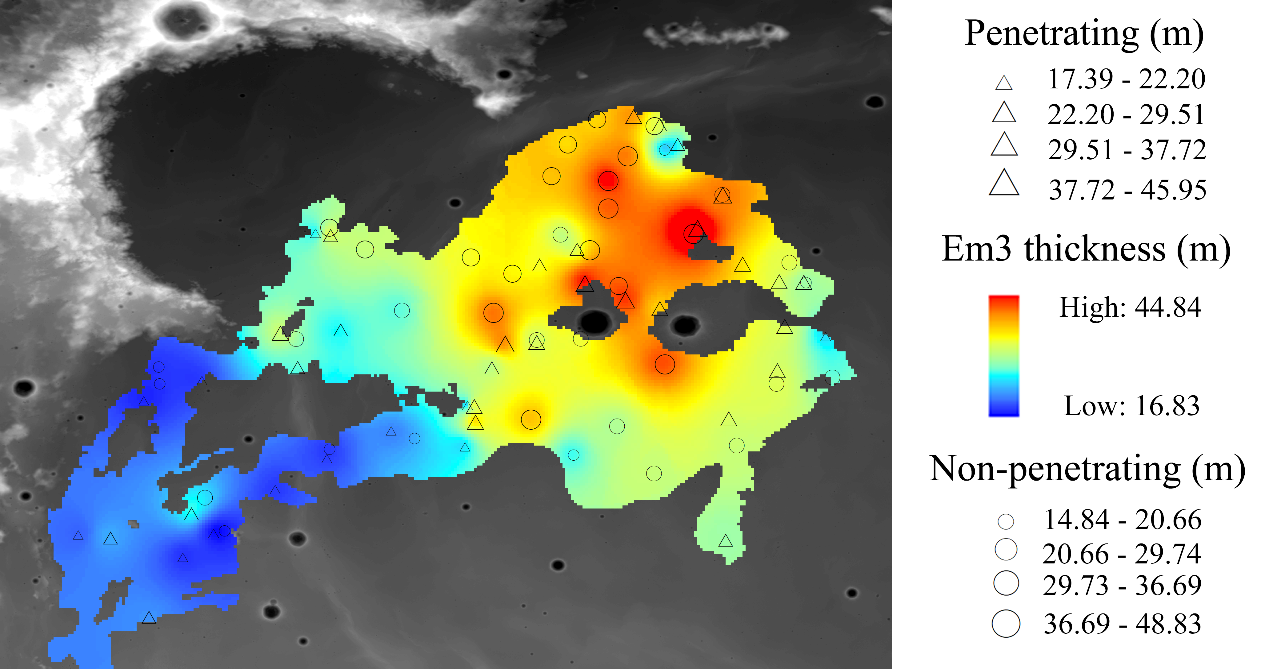

Fig.  3. Raster map of the estimated thickness of the Em3 north basalts and  the estimated excavation depths of the OPC and ONPC craters.

   Employing the topographic profile analysis method for UEm and the  crater excavation technique for LEm, we studied the thickness and  distribution of Eratosthenian basalts in Mare Imbrium. The thickness of  the Em3 unit ranges from ~17 m to ~45 m with lesser thickness to the  west and greater thickness in the interior and to the east (Fig. 3). The  estimated volume and average flux of the Eratosthenian-aged basalts are  greater than previously thought.

In  summary, this paper indicates that the Imbrium basin, including mare  and highlands, and perhaps the whole PKT, is an important region for  understanding the Moon.

This paper was published in Icarus (2018, 303：67-90) as cover illustration. Detailed information of the paper can be found at: https://doi.org/10.1016/j.icarus.2017.12.029
